Brand Name : | EBD |
Model Number : | D280A10 |
Certification : | CE,SGS,OMA |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 100sets/month |
Delivery Time : | 30-35days upon receipt of deposit |

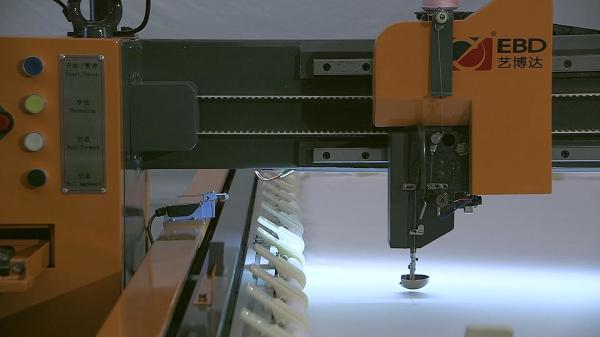

D280A10 High Speed Industrial Computerized Single Head Quilting Sewing Machine 2800rpm
Application:
Single Needle Quilting Machien can be widely applied to a variety
of quilts, sleeping bags, bedspreads, curtains quilting.
Function:
1. This machine reaches the internations advanced level.
2. The advance control software is applied and all technical
performance has been highly improved.
3. The Maximum speed is up to 2800 RPM(the fast and most efficient
in like product).
4. the machine has the function pf thread breaks detecting with
high sensitivity.
5. Simulate display of the design quilted.
6. Display of the working speed ,reasons for stop stitch
,coordinate and design file directly,Etc.
7. A lot of designs can be read from u disk and stored in memory
for a long term, which will be selected by operator.
8. During the course of quilting, once it occurs power cut or shut
off , designs or parameters that have been already set will still
be saved in the computer for resuming the original designs while it
selectrifiled.
9. After reinforce quilting parameters are set, return stitch will
be realized automatic quilting in a specifiled position.
Machine Parameters:
Series Number: | D280A10 |
Working Area: | 2600mm*2800mm |
Max Speed: | 2800rpm |
Stitch Distance: | 2~6mm |
Sewing Thickness: | ≤60mm |
Gross Power: | 5KW |
Rate Voltage: | 220V,50HZ |
Machine Size: | L6430*W3950*H1600(mm) |
Quilts Samples:
![]() |
