    High Rigidity Automatic Single Needle Quilting Machine , Mattress Sewing Machine

    Ask Lasest Price
    Brand Name : EBD
    Model Number : D280A10
    Certification : CE,SGS,OMA
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets/month
    Delivery Time : 30-35days upon receipt of deposit
    • Product Details
    • Company Profile

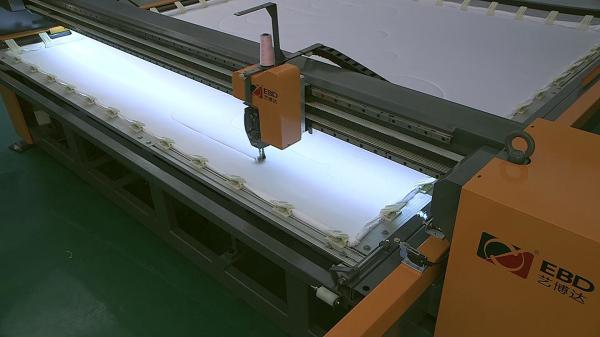

    High Rigidity Automatic Single Needle Quilting Machine , Mattress Sewing Machine

    D280A10 Auto-Flip Single Head Mattress Lock Stitch Sewing Machine Quilt Machine Price


    Application:


    This machine is mainly used for the summer is cool , cotton , chemical fiber , wool , silk floss quilt , bedspread , quilt , camel hair are sleeping bags , mattresses , textile decoration materials such as sewing.


    Function:


    1. Machine body frame made with thick square tube welding structure,simple but with high strength
    2. Good rigidity and reliable stability.
    3. Driven by 4 servo motors to assure precise transmission and low failure-rate.
    4. Max 2800 rpm, with 1500-2000 rpm in continuous production.
    5. Stitches between2mm-6mm are adjustable.
    6. Using movable high speed cantilever sewing head
    7. Jumbo rotary hook andadjustable press foot , to meet diversified sewing thickness.
    8. Equipped with break detector , it will automatically stop when thread breaks at broken spot, and sewing will continuous after threading again.
    9. Return patch-up at any spot is applicable.
    10. With simple operation system and straightaway XP editing software , easy to program and edit patterns.
    11. Real-time data such as pattern effects ,
    12. sewingsimulate movement and output etc can be shown on screen.


    Machine Parameters:


    Series Number:D280A10
    Working Area:2600mm*2800mm
    Max Speed:2800rpm
    Stitch Distance:2~6mm
    Sewing Thickness:≤60mm
    Gross Power:5KW
    Rate Voltage:220V,50HZ
    Machine Size:L6430*W3950*H1600(mm)

    Quilts Samples:
